HEALTECH OBD DIAGNOSIS TOOL KAWASAKI OBD-K01

HEALTECH OBD DIAGNOSIS TOOL KAWASAKI OBD-K01

The OBD-K01 ("On-board Diagnostics") for Kawasaki is a complete but economical tool to diagnose faults on Kawasaki electronic fuel injection motorcycles.

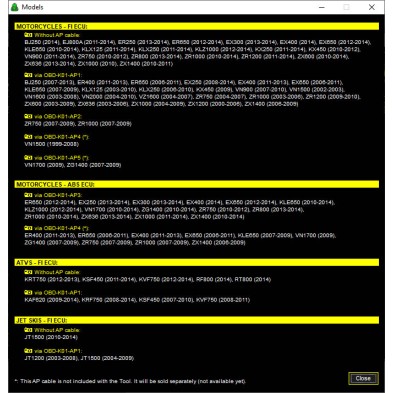

The OBD-K01 is compatible with these motorcycles (list updated 27/09/2019). It is not compatible with the ZX-10R 2011 onwards which uses a different data protocol.

You can try the OBD-K01 program for Windows (without restrictions), download it from here.

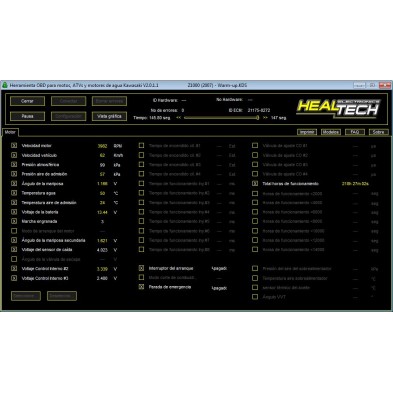

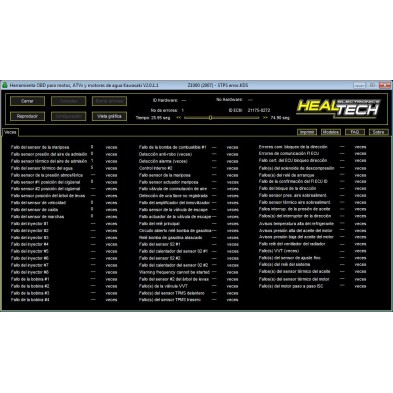

HealTech OBD Kawasaki - Engine Data HealTech OBD Kawasaki - Fault Codes HealTech OBD Kawasaki - Fault Incidents HealTech OBD Kawasaki - Tests HealTech OBD Kawasaki - Sensor Graphs

The HealTech OBD system is composed of a very compact hardware interface module, which links any PC (Windows) to the motorcycle's diagnostic connector.

The user can view the faults detected by the ECU itself and thus find out the cause of the "FI" warning. After repairing the fault, the fault recorded in the ECU can be deleted.

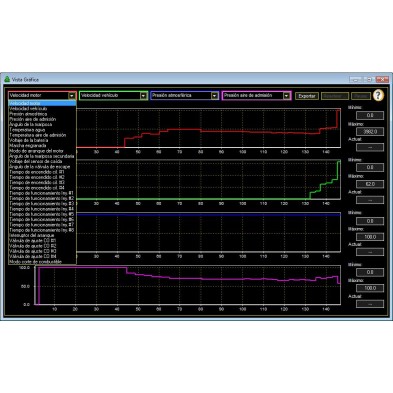

The software has a graphical view where the values ​​of any sensor can be plotted and recorded in real time. It is possible to archive the recording and play it back.

The software is multilingual, including Spanish, Czech, German, French, English, Hungarian, Italian and Russian

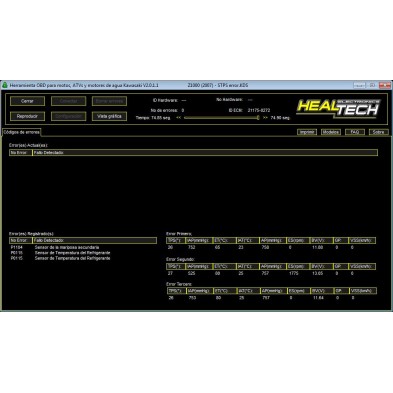

The user can read the diagnostic trouble codes (DTCs) and delete these warnings after repairing the fault.

The price is well below traditional professional tools and the official one.

Automatic software updates will be free for the life of the product.

It allows viewing the sensor parameters in real time, allowing long-term tests.

The parameters are automatically captured so that they can be saved and played back.

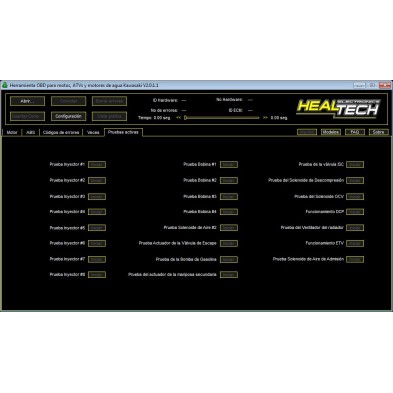

It also includes test functions for various servo motors.

The ODB is very easy to use, the size is compact and the USB connection makes it a very portable and useful tool.

It has a very robust design and is 100% resistant to humidity.

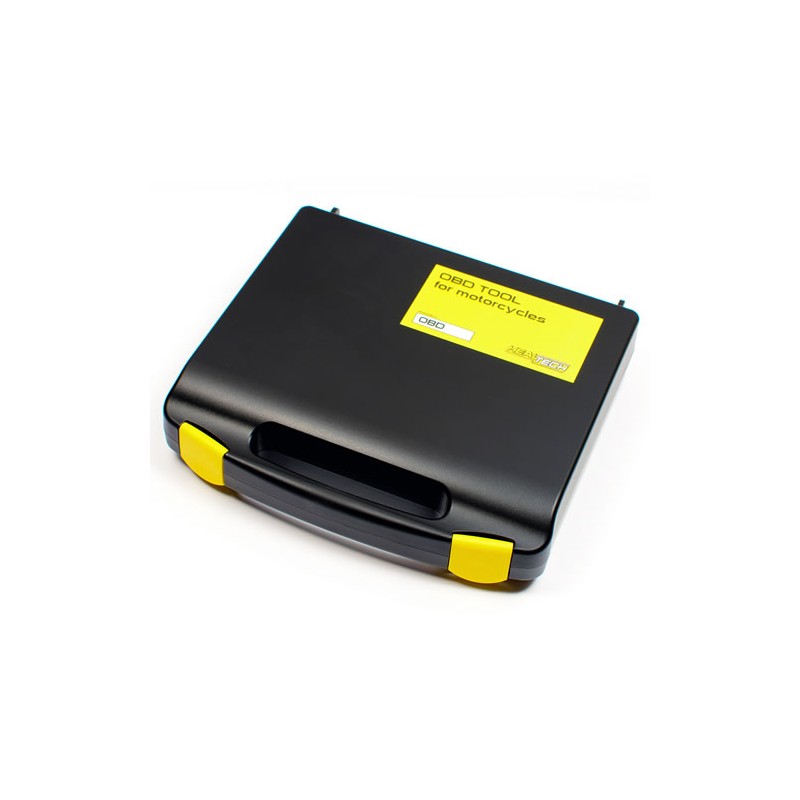

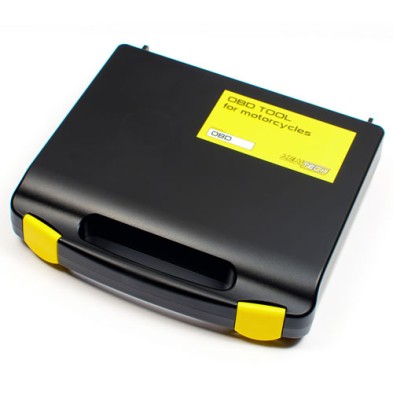

It comes in a small case and has a two-year warranty.

KAWASAKI Brute Force 750 (12-15)

KAWASAKI Brute Force 750 (08-11)

KAWASAKI ER-4 F - Ninja 400 (11-13)

KAWASAKI ER-4 N (11-13)

KAWASAKI ER-6 F (12-14)

KAWASAKI ER-6 F (06-08)

KAWASAKI ER-6 F (09-11)

KAWASAKI ER-6 F ABS (12-16)

KAWASAKI ER-6 N (06-08)

KAWASAKI ER-6 N (09-11)

KAWASAKI ER-6 N (12-14)

KAWASAKI ER-6 N ABS (12-16)

KAWASAKI KFX 450 (07-07)

KAWASAKI KFX 450R (09-14)

KAWASAKI KFX 450R (08-08)

KAWASAKI KLX 125 (10-13)

KAWASAKI KLX 250 (08-08)

KAWASAKI KLX 250 ie (09-14)

KAWASAKI KLX 250 ie (15-16)

KAWASAKI KLX 250 S (09-10)

KAWASAKI KRF 750 Teryx (08-08)

KAWASAKI KRF 750 Teryx EFI (09-11)

KAWASAKI KRF 750 Teryx EFI (12-13)

KAWASAKI KX 250F (14-15)

KAWASAKI KX 250F (16-16)

KAWASAKI KX 250F (17-17)

KAWASAKI KX 250F (11-11)

KAWASAKI KX 250F (12-12)

KAWASAKI KX 250F (13-13)

KAWASAKI KX 250F (18-19)

KAWASAKI KX 450F (10-11)

KAWASAKI KX 450F (09-09)

KAWASAKI KX 450F (13-15)

KAWASAKI KX 450F (12-12)

KAWASAKI Mean Streak 1500 (02-03)

KAWASAKI Mean Streak 1600 (04-07)

KAWASAKI Ninja 250 R (08-10)

KAWASAKI Ninja 250 R (11-12)

KAWASAKI Ninja 300 R (15-17)

KAWASAKI Ninja 300 R (13-14)

KAWASAKI Ninja 650 (17-19)

KAWASAKI STX-12F (03-08)

KAWASAKI STX-15F (04-15)

KAWASAKI Teryx 4 (12-13)

KAWASAKI Versys 1000 (12-14)

KAWASAKI Versys 1000 (17-18)

KAWASAKI Versys 1000 (15-16)

KAWASAKI Versys 650 (12-14)

KAWASAKI Versys 650 (10-10)

KAWASAKI Versys 650 (07-08)

KAWASAKI Versys 650 (15-16)

KAWASAKI Versys 650 (17-17)

KAWASAKI Versys 650 (09-09)

KAWASAKI Versys 650 (11-11)

KAWASAKI Versys 650 (18-19)

KAWASAKI Versys X 300 (KLE) (17-19)

KAWASAKI VN 1600 Classic (03-06)

KAWASAKI VN 1600 Classic Tourer (05-05)

KAWASAKI VN 2000 Classic (09-10)

KAWASAKI VN 900 Classic (09-10)

KAWASAKI VN 900 Classic (11-16)

KAWASAKI VN 900 Custom (09-10)

KAWASAKI VN 900 Custom (11-16)

KAWASAKI Vulcan 2000 (04-07)

KAWASAKI Vulcan 2000 (08-08)

KAWASAKI Vulcan 650 S (17-19)

KAWASAKI Vulcan 650 S (15-16)

KAWASAKI Vulcan 900 (06-08)

KAWASAKI W 800 (10-15)

KAWASAKI Z 1000 (03-06)

KAWASAKI Z 1000 (14-16)

KAWASAKI Z 1000 (07-08)

KAWASAKI Z 1000 (09-09)

KAWASAKI Z 1000 (17-19)

KAWASAKI Z 1000 - ABS (14-16)

KAWASAKI Z 1000 ABS (10-13)

KAWASAKI Z 1000 SX (11-13)

KAWASAKI Z 1000 SX (14-16)

KAWASAKI Z 1000 SX - ABS (11-13)

KAWASAKI Z 1000 SX - ABS (14-16)

KAWASAKI Z 1000 SX - ABS (17-19)

KAWASAKI Z 250 SL (mono) (16-16)

KAWASAKI Z 250 SL (mono) (14-15)

KAWASAKI Z 250 SL (mono) (13-13)

KAWASAKI Z 300 (15-16)

KAWASAKI Z 650 (17-19)

KAWASAKI Z 750 (10-10)

KAWASAKI Z 750 (06-06)

KAWASAKI Z 750 (07-08)

KAWASAKI Z 750 (09-09)

KAWASAKI Z 750 (04-05)

KAWASAKI Z 750 (11-12)

KAWASAKI Z 750 R (11-13)

KAWASAKI Z 750 R ABS (11-13)

KAWASAKI Z 750 S (semicarenata) (05-06)

KAWASAKI Z 800 (13-13)

KAWASAKI Z 800 (14-16)

KAWASAKI Z 800 E (13-13)

KAWASAKI Z 800 E (14-16)

KAWASAKI Z 900 (17-19)

KAWASAKI Z 900 E (70 kW) (17-19)

KAWASAKI Z 900 RS (18-19)

KAWASAKI Z 900 RS Cafè Racer (18-19)

KAWASAKI ZX-10R (10-10)

KAWASAKI ZX-10R (06-06)

KAWASAKI ZX-10R (04-05)

KAWASAKI ZX-10R (07-07)

KAWASAKI ZX-10R (09-09)

KAWASAKI ZX-10R (08-08)

KAWASAKI ZX-12R (00-01)

KAWASAKI ZX-12R (02-03)

KAWASAKI ZX-12R (04-05)

KAWASAKI ZX-6R (11-12)

KAWASAKI ZX-6R (07-08)

KAWASAKI ZX-6R (09-10)

KAWASAKI ZX-6R - 636 (13-17)

KAWASAKI ZX-6R - 636 (03-04)

KAWASAKI ZX-6R - 636 (05-06)

KAWASAKI ZX-6RR (04-04)

KAWASAKI ZX-6RR (05-06)

KAWASAKI ZZR-1400 (10-11)

KAWASAKI ZZR-1400 (07-07)

KAWASAKI ZZR-1400 (06-06)

KAWASAKI ZZR-1400 (09-09)

KAWASAKI ZZR-1400 (08-08)

KAWASAKI ZZR-1400 ABS (07-07)

KAWASAKI ZZR-1400 ABS (08-08)

KAWASAKI ZZR-1400 ABS (09-09)

KAWASAKI ZZR-1400 ABS (10-11)
