YSS REAR SHOCK ABSORBER MZ366-315TR-09

YSS REAR SHOCK ABSORBER MZ366-315TR-09

MZ366-315TR-09-85

YSS gas rear shock absorber from the Top Line range that stands out for offering excellent performance at a reduced price.

The YSS Top Line shock absorber has compression and rebound adjustment that allows the damping control to be optimized (either for faster or slower operation) and depending on the needs of each rider and the type of road.

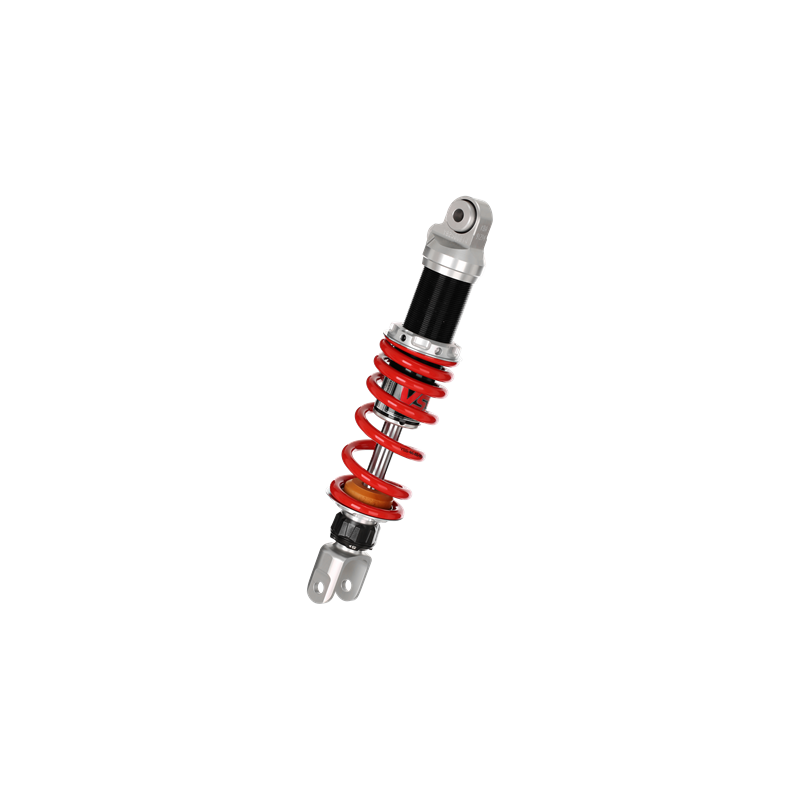

The image shown is generic and does not represent the compatible model. The shock absorber will be supplied with the upper and lower mount specific to the compatible motorcycle model.

APRILIA RS 250 RACE REPLICA 1995 - 1997

GAS TOP LINE TOP LINE (STD)

MZ366-315TR-09-85

Vin code : LD000,LD001,LD002

ABE : Yes

TOP : EYE 10x30

Bottom : FORK 30x10

Spring : 46-60-90-145

Length : 315

How to interpret the YSS product reference:

Digit 1 (product group):

F: Front double shock absorber.

V: Front monotube shock absorber.

R: Rear double shock absorber.

M: Rear monotube shock absorber.

T: Rear double shock absorber scooter.

O: Rear monotube shock absorber scooter.

I: Inner tube.

K: Front cartridge.

Digit 2 (product type):

G, ​​C: Piggy Back gas shock absorber with external top reservoir (G=Top Line and C=Eco Line).

U, K: Piggy Back gas shock absorber with external reservoir button (U=Top Line and K=Eco Line).

X, O: Piggy Back gas shock absorber with external reservoir on the hose (X=Top Line and O=Eco Line).

A: Split piston gas shock absorber.

Z, E: Emulsion gas shock absorber (Z=Top Line and E=Eco Line). T: Triple piston (ATPD).

B: Gas - DTG.

D: Shock absorber with double hydraulic tube.

S: Shock absorber with 1 hydraulic tube.

Digit 3-5 (piston and shaft diameter):

168: 16 mm piston + 8 mm shaft.

188: 18mm piston + 8mm shaft.

220: 22mm piston + 10mm shaft.

222: 16mm piston + 12mm shaft.

302: 30mm piston + 12mm shaft.

304: 30mm piston + 14mm shaft.

306: 30mm piston + 16mm shaft.

308: 30mm piston + 8mm shaft.

362: 36mm piston + 12mm shaft.

364: 36mm piston + 14mm shaft.

366: 36mm piston + 16mm shaft.

456: 45mm piston + 16mm shaft.

506: 50mm piston + 16mm shaft.

3020: 30mm piston + 20mm shaft.

Digit 6: This digit will have a dash (-) or a slash (/) in it:

Digit 7: This digit indicates the length of the shock absorber in millimetres. Digit 10-13 (characteristics):

P: Spring preload adjustment using a scale.

T: Spring preload adjustment using a thread.

H: Hydraulic spring preload adjustment.

HI: Hydraulic spring preload adjustment (on the hose).

H2: Adjustment with pneumatic preload regulator.

MI: Mechanical preload adjustment.

R: Adjustable rebound.

C: Adjustable compression.

W: Adjustable high and low speed compression.

V: VBSC- High and Low Compression.

L: Adjustable Height +5/-5mm.

Digit 14: This digit will be followed by a dash (-) or a slash (/):

Digit 15-16: This digit indicates the specification sheet number. Digit 18-19 (tube/spring/reservoir color (optional):

1: Chrome / 9 HT (Hard) / Pearl / Bronze. 2: White / A Silver. 3: Gold / P Pink. 4: Yellow / Z Zinc. 5: Red / T Platinum Gray. 6: Blue / Q Turqoise. 7: Orange / G Gray. 8: Black / Non Reservoir.

Digit 20 (optional):

AB: Shock with bearing and 30 clicks of compression.

B: Black Edition shock (complete).

F: Off-Road shock.

I: Idol shock (90-degree reservoir against the shock body).

O: Shock with off-set fork or eye-let.

R: Racing Product.

S: Classic Series (Black decal instead of red)

V: Barrel Spring.
