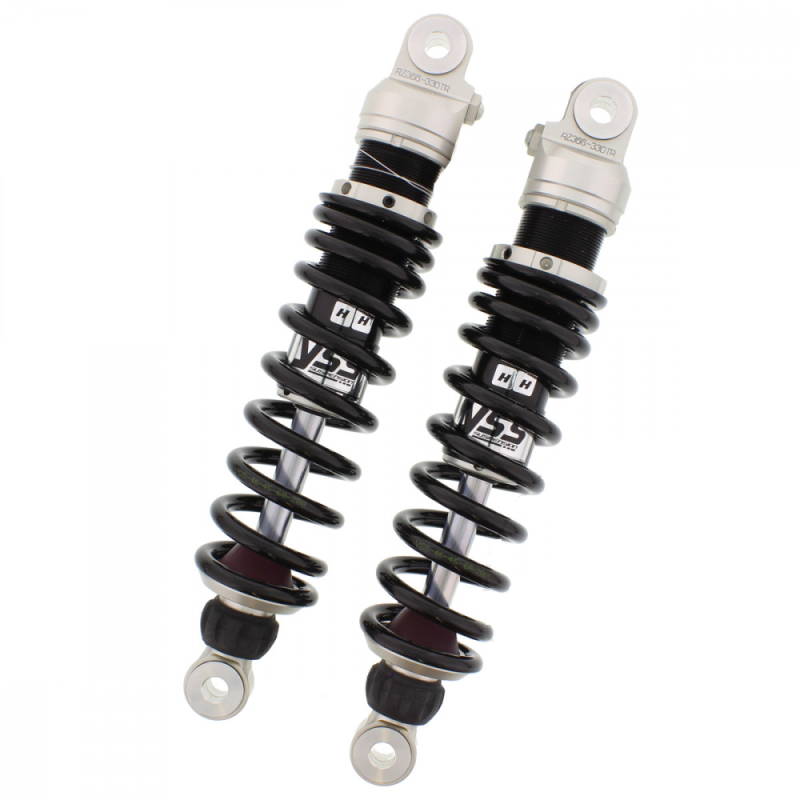

YSS REAR SHOCK ABSORBER RZ362-330TR-46S
RZ362-330TR-46S
GAS TOP LINE TOP LINE (STD)
High performance gas shock absorber. The spring preload can be manually adjusted to accommodate increased or decreased weight.
High performance gas shock absorber.
YSS REAR SHOCK ABSORBER RZ362-330TR-46S
RZ362-330TR-46S
GAS TOP LINE TOP LINE (STD)
High performance gas shock absorber. The spring preload can be manually adjusted to accommodate increased or decreased weight.
High performance gas shock absorber.
RZ362-330TR-46S / FLHR 1340 ELECTRA GLIDE ROAD KING 1994-1998
RZ362-330TR-46S / FLHR 1450 ELECTRA GLIDE ROAD KING 1999-2001
RZ362-330TR-46S / FLHRCI 1450 ELEKTRA GILDE ROAD KING CLASSIC 1999-2006
RZ362-330TR-46S / FLHRI 1340 ELECTRA GLIDE ROAD KING 1996-1998
RZ362-330TR-46S / FLHRI 1450 ROAD KING 2004-2006
RZ362-330TR-46S / FLHS 1340 ELECTRA GLIDE SPORT 1987-1993
RZ362-330TR-46S / FLHT 1340 ELECTRA GLIDE STANDARD 1996-1998
RZ362-330TR-46S / FLHT 1450 ELECTRA GLIDE STANDARD 1999-2003
RZ362-330TR-46S / FLHTC 1450 ELECTRA GLIDE CLASSIC 2002-2003
RZ362-330TR-46S / FLHTCI 1340 EFI ELECTRA GLIDE CLASSIC 1996-1998
RZ362-330TR-46S / FLHTCI 1450 ELECTRA GLIDE CLASSIC 2004-2004
RZ362-330TR-46S / FLHTCU 1340 ELECTRA GLIDE ULTRA CLASSIC 1989-1997
RZ362-330TR-46S / FLHTCUI 1340 EFI ELECTRA GLIDE ULTRA CLASSIC 1996-1998
RZ362-330TR-46S / FLHTCUI 1450 ELEKTRA GLIDE ULTRA CLASSIC 1999-2006
RZ362-330TR-46S / FLHTI 1450 ELECTRA GLIDE STANDARD 2004-2006
RZ362-330TR-46S / FXDS-CON 1340 DYNA GLIDE LOW RIDER CONVERTIBLE 1994-1998
RZ362-330TR-46S / FXDX 1450 DYNA SUPER GLIDE SPORT 1999-2003
RZ362-330TR-46S / FXDXI 1450 DYNA SUPER GLIDE SPORT 2004-2005
RZ362-330TR-46S / FXDXT 1450 DYNA SUPER GLIDE T-SPORT 2001-2003
RZ362-330TR-46S / FXLR 1340 LOW RIDER CUSTOM 1987-1994
High performance gas shock absorber. The spring preload can be manually adjusted to accommodate increased or decreased weight.
High performance gas shock absorber.
The spring preload can be manually adjusted to accommodate increased or decreased weight.
YSS rear gas shock absorber from the range
How to interpret the YSS product reference:
Digit 1 (product group):
F: Front double shock absorber.
V: Front monotube shock absorber.
R: Rear double shock absorber.
M: Rear monotube shock absorber.
T: Rear double scooter shock absorber.
O: Rear monotube scooter shock absorber.
I: Inner tube.
K: Front cartridge.
Digit 2 (product type):
G, C: Piggy Back gas shock absorber with external upper reservoir (G=Top Line and C=Eco Line).
U, K: Piggy Back gas shock absorber with external reservoir button (U=Top Line and K=Eco Line).
X, O: Piggy Back gas shock absorber with external reservoir on the hose (X=Top Line and O=Eco Line).
A: Split piston gas shock absorber.
Z, E: Emulsion gas shock absorber (Z=Top Line and E=Eco Line). T: Triple piston (ATPD).
B: Gas - DTG.
D: Hydraulic double tube shock absorber.
S: Shock absorber with 1 hydraulic tube.
Digit 3-5 (piston and shaft diameter):
168: 16 mm piston + 8 mm shaft.
188: 18 mm piston + 8 mm shaft.
220: 22 mm piston + 10 mm shaft.
222: 16 mm piston + 12 mm shaft.
302: 30 mm piston + 12 mm shaft.
304: 30 mm piston + 14 mm shaft.
306: 30 mm piston + 16 mm shaft.
308: 30 mm piston + 8 mm shaft.
362: 36 mm piston + 12 mm shaft.
364: 36 mm piston + 14 mm shaft.
366: 36 mm piston + 16 mm shaft.
456: 45 mm piston + 16 mm shaft.
506: 50 mm piston + 16 mm shaft.
3020: 30 mm piston + 20 mm shaft.
Digit 6: This digit will have a dash (-) or a slash (/) in it:
Digit 7: This digit indicates the length of the shock absorber in millimetres. Digit 10-13 (characteristics):
P: Spring preload adjustment using a scale.
T: Spring preload adjustment using a thread.
H: Hydraulic spring preload adjustment.
HI: Hydraulic spring preload adjustment (on the hose).
H2: Adjustment with pneumatic preload regulator.
MI: Mechanical preload adjustment.
R: Adjustable rebound.
C: Adjustable compression.
W: Adjustable high and low speed compression.
V: VBSC- High and low compression.
L: Adjustable height +5/-5mm.
Digit 14: This digit will have a dash (-) or a slash (/) appear:
Digit 15-16: This digit indicates the specification sheet number. Digit 18-19 (tube/spring/reservoir color (optional):
1: Chrome / 9 HT (Hard) / Pearl / Bronze. 2: White / A Silver. 3: Gold / P Pink. 4: Yellow / Z Zinc. 5: Red / T Platinum Gray. 6: Blue / Q Turqoise. 7: Orange / G Gray. 8: Black / Non Reservoir.
Digit 20 (optional):
AB: Shock with bearing and 30 clicks of compression.
B: Black Edition shock (complete).
F: Off-Road shock.
I: Idol shock (90-degree reservoir against the shock body).
O: Shock with off-set fork or eye-let.
R: Racing Product.
S: Classic Series (Black decal instead of red)
V: Barrel Spring.
