YSS REAR SHOCK ABSORBER TE302-400T-04AL

YSS REAR SHOCK ABSORBER TE302-400T-04AL

TE302-400T-04AL / FORZA 250 2000-2007

TE302-400T-04AL / SH 300i 2007-2017

Honda NSS Jazz 250 250 01/04

Honda NSS Jazz ABS 250 250 01/04

Honda SH (2007-2014) 300 300 07/14

YSS TE302-400T-04AL Eco Line Honda SH 300 rear shock absorbers.

YSS gas shock absorbers from the Eco Line range with adjustable spring preload.

The YSS Eco Line range offers a product with excellent performance at a reasonable price and is worth trying.

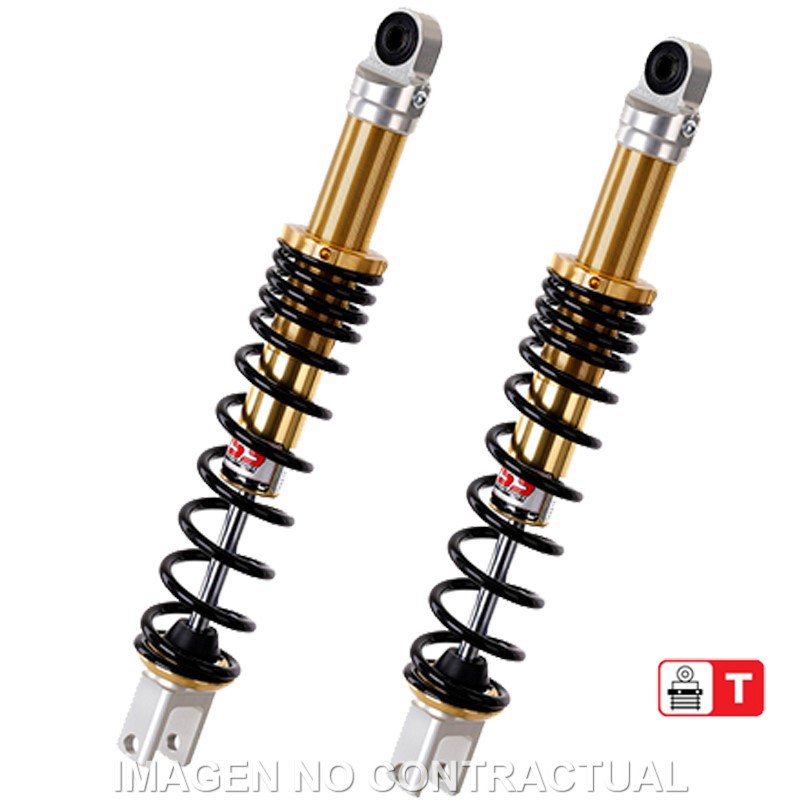

The image shown is generic and does not represent the compatible model.

The shock absorbers are supplied with the upper and lower mounting specific to the compatible motorcycle model.

High performance gas shock absorber.

Spring preload can be manually adjusted to suit higher or lower weight.

YSS gas rear shock absorber from the range

How to interpret the YSS product reference:

Digit 1 (product group):

F: Front double shock absorber.

V: Front monotube shock absorber.

R: Rear double shock absorber.

M: Rear monotube shock absorber.

T: Rear scooter double shock absorber.

O: Rear scooter monotube shock absorber.

I: Inner tube.

K: Front cartridge.

Digit 2 (product type):

G, ​​C: Piggy Back gas shock absorber with external top reservoir (G=Top Line and C=Eco Line).

U, K: Piggy Back gas shock absorber with external reservoir button (U=Top Line and K=Eco Line).

X, O: Piggy Back gas shock absorber with external reservoir on the hose (X=Top Line and O=Eco Line).

A: Split piston gas shock absorber.

Z, E: Emulsion gas shock absorber (Z=Top Line and E=Eco Line). T: Triple piston (ATPD).

B: Gas - DTG.

D: Shock absorber with double hydraulic tube.

S: Shock absorber with 1 hydraulic tube.

Digit 3-5 (piston and shaft diameter):

168: 16 mm piston + 8 mm shaft.

188: 18 mm piston + 8 mm shaft.

220: 22 mm piston + 10 mm shaft.

222: 16 mm piston + 12 mm shaft.

302: 30 mm piston + 12 mm shaft.

304: 30 mm piston + 14 mm shaft.

306: 30mm piston + 16mm shaft.

308: 30mm piston + 8mm shaft.

362: 36mm piston + 12mm shaft.

364: 36mm piston + 14mm shaft.

366: 36mm piston + 16mm shaft.

456: 45mm piston + 16mm shaft.

506: 50mm piston + 16mm shaft.

3020: 30mm piston + 20mm shaft.

Digit 6: This digit will have a dash (-) or a slash (/) in it:

Digit 7: This digit tells us the length of the shock absorber in millimeters. Digit 10-13 (Features):

P: Spring preload adjustment by scale.

T: Spring preload adjustment by thread.

H: Hydraulic spring preload adjustment.

HI: Hydraulic spring preload adjustment (on the hose).

H2: Adjustment with pneumatic preload regulator.

MI: Mechanical preload adjustment.

R: Adjustable rebound.

C: Adjustable compression.

W: Adjustable high and low speed compression.

V: VBSC- High and low compression.

L: Adjustable height +5/-5mm.

Digit 14: A dash (-) or a slash (/) will appear in this digit:

Digit 15-16: This digit indicates the specification sheet number. Digit 18-19 (tube/spring/reservoir color (optional):

1: Chrome / 9 HT (Hard) / Pearl / Bronze. 2: White / A Silver. 3: Gold / P Pink. 4: Yellow / Z Zinc. 5: Red / T Platinum Gray. 6: Blue / Q Turqoise. 7: Orange / G Gray. 8: Black / Non Reservoir.

Digit 20 (optional):

AB: Shock with bearing and 30 clicks of compression.

B: Black Edition shock (complete).

F: Off-Road shock.

I: Idol shock (90-degree reservoir against the shock body).

O: Shock with off-set fork or eye-let.

R: Racing Product.

S: Classic Series (Black decal instead of red)

V: Barrel Spring.
