AIM ECU BRIDGE

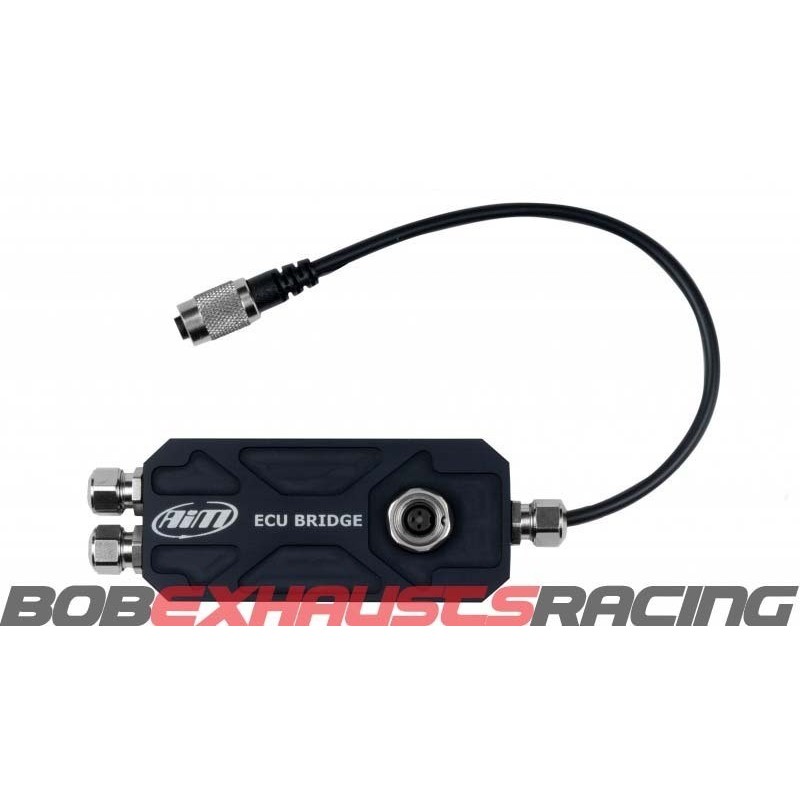

AIM ECU BRIDGE AiM ECU Bridge, the easiest way to view engine data on your SmartyCam. AiM ECU/RPM Bridge : these two systems are necessary to display on a screen or in a SmartyCam high definition video, the engine data log, when the Datalogger is not available. The Brigge ECU does not have internal memory and therefore does not save data for later analysis. They are compatible with G-Dash and Formula and GT steering wheels, and of course with SmartyCam HD cameras. AiM ECU Bridge is used in case the engine control unit transmits the data in the hardware protocols: OBDII, CAN or RS232. AiM has developed hundreds of protocols, so that compatibility with practically all ECUs is possible, be it Production ECUs or Racing ECUs. Specifications Available in two versions: With Plug&Play connector directly to the OBDII connector of your Stock ECU With CAN/RS232 connection Technical characteristics of the ECU jumper Configurable ECU interface CAN protocol for external modules (viewfinders or SmartyCam HD) USB port for communication with PC External supply 8/18 V Technical characteristics of the RPM bridge Signal coil 150-400 V 4-50 V square wave signal CAN protocol for external modules (viewfinders or SmartyCam HD) USB port for communication with PC External supply 8/18 V
