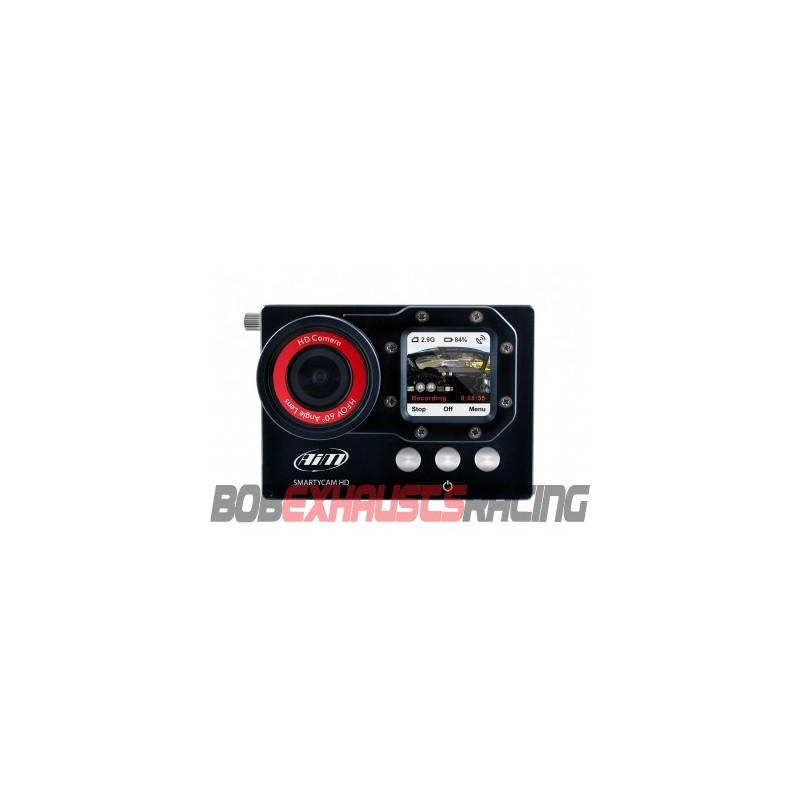

AIM Smartycam HD Rev. 2.1
The camera designed to record motorsport video with real-time data overlay,
Integrated triaxial accelerometer, telecentric lens with 6 elements, 67 °, 84 ° or 120 °
lens, CMOS global shutter, automatic start and stop, dimensions 87x63x49 mm, screen
resolution 128x128 pixels, weight 280 g (rechargeable lithium battery included), video
H.264 1280x720 pixel format at 30 fps, 9-15 volt external power, file storage on SD card
(not included), IP67 waterproof.
SmartyCam HD with 67 °, 84 ° or 120 ° lens, CAN cable or external power cable, USB / AC
power adapter, battery charger, CD for software installation, user manual.
SmartyCamHd2 overlays all the data you need from different sources. From GPS: track map and vehicle position, as well as lap speed and split times. With the camera connected to the ECU: RPM, gas position, gear engaged, acceleration, temperature, pressures and with additional sensors also their values
SmartyCam Hd2 uses our latest software, the Race Studio3 that allows you to configure all the details of the video and obtain various information from them. You can configure the template in almost infinite ways: Add and your logo and the map of the track as well as the information you want to add to your video to make it a unique experience.
Engine data overlay
GPS via external antenna
Three-axis acceleration sensor
Rechargeable lithium battery
Up to 128GB memory (SD card)
ECU Interace (Optional ECU Bridge)
aluminum housing
TFT color display - 128x128 pixels
